8.5GHz矢量網絡分析儀/多端口測試儀

產品簡介

NA76xx 系列矢量網絡分析儀，吸取了前幾代網絡分析儀應用客戶的大量反饋，結合了最新國際儀器發展的技術和態勢，是德力儀器最新推出的第四代矢量網絡分析儀。德力公司最新研發推出的多端口測試儀，搭配矢量網絡分析儀使用，可有效提高生產制造企業的測試效率，節約時間成本。

頻率范圍從100kHz 覆蓋3GHz、3.5GHz、4.5GHz、6GHz、8.5GHz 頻段，為無線通信、廣播電視、汽車電子、半導體和醫療器件等行業射頻器件、組件的研發和生產的應用提供了高效、靈活的測試手段，進入了民品、工業、科研教育和軍工等領域。

產品特點
● 12.1英寸 1280*800 TFT觸摸屏
●非常寬的頻率覆蓋范圍：100 kHz 至 8.5 GHz
●非常寬的動態范圍：>125 dB
●極低的跡線噪聲： <0.005 dBrms ( 在 3 kHz IFBW)
●快速的測量速度：80usec/點
●精確的誤差修正與校準功能
●通過 USB、LAN 和 GPIB 接口進行系統互聯
●隨時可以升級提高性能或增加新功能操作簡單
●與智能機器人測試工作站組合，實現工廠的自動化批量生產測試

現場的實用性

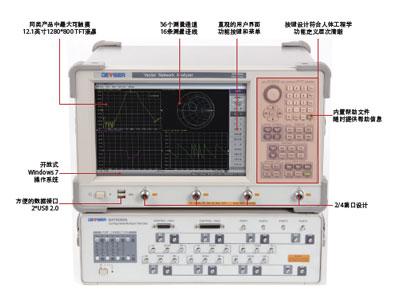

NA76xx 系列采用了亮麗的12.1 英寸1280*800 分辨率的彩色觸摸屏，使得用戶可以將各種對話框、測量通道和跡線等理想的顯示在同一畫面。通過觸屏或者鼠標操作，可以在畫面上拖放通道、跡線和光標，可以編輯測量通道、跡線的名稱，來方便用戶將測量結果歸檔。
NA76xx 系列可以使用多個參數配置文件，用戶僅需觸摸或點擊該配置文件，將所需配置調到前臺，進行相關的測量，使用該功能可以大大提高測試效率。

幫助信息
儀器內置幫助文件，您可隨時按下前面板【Help】鍵，查找相關的幫助信息。極大方便您快速掌握儀器的基本操作技能。
